AWS Database's

Database Types​

  • SQL (RDBMS): RDS, Aurora - great for joins.
  • NoSQL: DynamoDB (JSON), ElastiCache (key/value), Neptune (graphs), DocumentDB (for MongoDB), Keyspaces (for Apache Cassandra) - no joins, no SQL.
  • Object Store: S3 (for big objects), Glacier (for backups/archives).
  • Data Warehouse: Redshift (OLAP), Athena, EMR - SQL Analitics/BI.
  • Search: OpenSearch (JSON) - free text, unstructured searches.
  • Graphs: Amazon Neptune - displays relationships between data.
  • Ledger: Amazon Quantum Ledger Database
  • Time series: Amazon Timestream

RDS​

So the use cases of Amazon RDS is to store relational databases.

For example, using the RDBMS or have an online transaction processing database, so OLTP. If you wanted to perform SQL queries on top of it and transactions.

  • Managed PostgreSQL / MySQL / Oracle / SQL Server / DB2 / MariaDB / Custom
  • Provisioned RDS Instance size and EBS Volume Type & Size
  • Auto-scaling capability for Storadge layer
  • Support for Read Replicas (to scale read capabilities - analytics and etc.) and for High Availability purposes may use the Multi-AZ to have a standby (резервной) database, although that database is just here for in case a disaster strikes. You cannot use it to perform queries against it
  • Security through IAM, Secutiry Groups, KMS, SSL in transit

Security for your RDS database is done through IAM, so you can use, for example, username and password to connect to your database, but also you can use IAM authentication, for some of them. You have Security Groups for network security on your Amazon RDS database. KMS for at risk encryption, and you can have intrinsic encryption using SSL and TLS.

  • Automated Backup with Point in time restore feature (up to 35 days)

If you wanted to do backups, you have the automated backup option, which is up to 35 days, and if you use that, you can do point in time restore to any point of time in these 35 days, and this will create a new database out of it

  • Manual DB Snapshot for longer-term recovery

Or if you want to retain backups for longer term recovery, then you would use a manual database snapshots.

  • Managed and Scheduled maintenance (with downtime)

There is a managed and schedule maintenance, which will bring downtime into your database. So this is due to the fact that you have to provision it and that you have to update. AWS has to update at some point database engine or the underlying EC2 instance for patches of security and so on.

  • Support for IAM Authentication, integration with Secret Manager

There is support for IAM authentication on RDS, and you can enforce it through the RDS proxy, and it has integration with Secrets Manager to manage the database credentials.

  • RDS Custom for access to and customize the underlying instance (Oracle & SQL Server)

If you wanted to have access to the underlying instance and customize it, then you can reuse the RDS custom option and this is available for the Oracle and SQL Server type of databases.

Aurora​

Use cases for Aurora are the same as RDS, but you have less maintenance, more flexibility, more performance, and more features out of the box, which makes Aurora a great choice.

  • Compatible API for PostgrSQL / MySQL, separation of storage and compute

Aurora is a very special service because storage and compute are separate

    • Storage: data is stored in 6 replicas, across 3 AZ - higly available, self-healing, auto-scaling

The data is stored in 6 replicas across 3 Availability Zones by default, and you cannot change this, therefore Aurora is highly available. On top of it, in case there is any issue with the storage, there's going to be a self-healing process behind the scenes happening. And if you wanted to increase the storage, no problem. There is auto-scaling out of the box.

    • Compute: Cluster of DB Instance across multiple AZ, auto-scaling of Read Replicas

For the compute side, this is the actual Database instances, they are clustered, and they can be across multiple Availability Zones if you wanted to. And then if you had Read Replicas, you could auto-scale them as well to increase the capacity in case the load increases.

    • Cluster: Custom endpoints for writer and reader DB instances

IF you have a cluster of Database instances, then you need custom endpoints to know where to write and read, and therefore you have a writer endpoint and a reader endpoint.

  • Same security / monitoring / maintenance features as RDS

Aurora has the same security, monitoring, and maintenance features as RDS because, end of the day, they use kind of the same engine.

  • Aurora Serverless - for unpredictable / intermittent workloads (для непредсказуемых/прерывистых рабочих нагрузок), no capacity

This is when you have unpredictable and intermittent workloads, but you don't need to do any capacity planning, so it is quite helpful in that use case.

  • Aurora Global: up to 16 DB Read Instances in each region, < 1 second storage replication

If you wanted to have a Global Database, you could use Aurora Global, and that gives you up to 16 database read instances in each region where your database is replicated. And the storage replication happens in less than 1 seconds usually across regions. And in case you have a problem in your Primary Region, you can promote a Secondary Region to become your New Primary.

  • Aurora Machine Learning: perform ML using SageMaker & Comprehend on Aurora
  • Aurora Database Cloning: new cluster from existing one, faster than restoring a snapshot

If you wanted to use a testing database or a staging database out of your production database, for example, you could use the Aurora Database Cloning feature to create a new Aurora cluster out of the existing one, and it is much faster than doing a snapshot and restoring it.

ElastiCache​

Use cases for ElastiCache are going to be Key/Value store, when you do frequent read-on-top of your database, it's good to cache database queries. Also, if you have session data that needs to be stored for your users on your website, ElastiCache is also a very good use case.

info

You cannot use SQL on ElastiCache.

  • Managed Redis / Memcached (similar offering as RDS, but for caches)
info

Cache is an in-memory data store which gives you sub-millisecond latency when you want to read data.

So for this, you must provision an ElastiCache instance type (e.g., cache.m6g.large) for your cache, and then you are good to go.

So if you are using Redis, you can have support for Clustering, Multi AZ, and Read Replicas for sharding, and you have security provision through IAM, SG, KMS, Redis Auth.

You have the same kind of features as RDS for backups, snapshots, and point-in-time restore. You have managed and scheduled maintenance.

If you decide to use Amazon ElastiCache to perform some caching on top or combine with an RDS database, is that to use ElastiCache, you need to modify your application code to leverage ElastiCache.

caution

ElastiCache is not a good choice for a caching solution that does not require a code change.

DynamoDB​

Anytime you see that you need to rapidly evolve schema which have a flexible type of database schema DynamoDB is going to be a great choice. So the use cases for DynamoDB is when you want a database and do serverless application development and your data are small documents, for example, in the 100s of kilobytes of size maximum or when you want a distributed serverless cache.

DynamoDB is a proprietary technology from AWS. It's a managed serverless and NoSQL database that provides you out of the box millisecond latency. You have two capacity modes you need to choose from:

  1. Provision Capacity: with optional auto-scaling, which is great when you have a smooth type of workload that increases gradually over time or decreases gradually over time.
  2. On-demand Capacity: you don't have to provision capacity, but it scales automatically for you, which is great if you have very unpredictable workloads or if you have sudden steep spikes of demand on your database.

DynamoDB can replace ElasticCache as a key-value store and it's a great way to, for example, store session data for your website, combined with a TTL feature to expire a row after a specific amount of time.

DynamoDB is highly available. It is across multiple Availability Zones by default. The Reads and the Writes are fully decoupled (полностью развязаны) and it's possible for you to have transactions on top of the DynamoDB tables.

It is possible for you to create a Read Cache out of the box that is fully compatible with DynamoDB which is a DynamoDB Accelerator (DAX) cluster, and the particularity of it (особенность этого) is that you get then microsecond Read Latency.

In terms of security authentication and authorization, everything is done through IAM.

You have Event Processing capability on top of DynamoDB, so you can enable DynamoDB Streams to stream all the changes happening into your database and you can have an integration to invoke Lambda from the DynamoDB Stream. Therefore, Lambda can be invoked for every single change in your DynamoDB table.

The other option is instead of standing the data to DynamoDB Streams, you can send the data to Kinesis Data Streams. The advantage is that on top of it, you can use the Kinesis Data Firehose feature, or you can use any type of integration that leverages (использует) Kinesis Data Stream.

  • For example, you could have longer term retention up to 1 year on Kinesis data streams.

You have a Global Table feature on top of the DynamoDB, which allows you to do active-active replication across multiple regions. So anyone can Read and Write from any region; this is why it's called active-active.

Backup options​

You have two backup options:

  1. Automated Backup: you need to enable point in time recovery (PITR) for that and you can restore your table to a new DynamoDB table for any point of time up to 35 days.
  2. On-Demand Backup: if you want to have longer term retention of backups, which will also restore to a new table.

You can export your DynamoDB table to Amazon S3 without using any of the Read Capacity Units within the PITR windows, So within 35 days using the export to S3 feature. And you can also import from S3 without using any Write Capacity Units into a new table.

S3​

S3 is a key value store for objects. And it's great when you want to store big objects, it's not great to store many small objects. Use cases are around static files.

Tiers​

S3 is serverless, you have infinite scaling. The maximum object size is 5 terabytes and you can version objects over time. You have different storage tiers:

  • S3 Standard
  • S3 Infrequent Access
  • S3 Intelligent
  • S3 Glacier

and if you want to transition between the tiers you can use lifecycle policies.

Features​

Some important features you need to know:

  • Versioning
  • Encryption
  • Replication
  • Multifactor Authentication (MFA)
  • Access Logs

Security​

In terms of security you have:

  • IAM security but you can also have Bucket Policies on top of your S3 Buckets
  • ACL
  • Access Points
  • S3 Object Lambda to modify objects before they are sent to the applications
  • CORS
  • the concept of Object Lock or Vault Lock for Glacier

Encryption​

In terms of encryption mechanisms, we have:

  • SSE-S3
  • SSE-KMS where you can bring your own KMS key
  • SSE-C
  • Client-Side (client site encryption)
  • TLS encryption in transit
  • Default encryption scheme

Batch operations​

If you wanted to operate on all the files in Amazon S3 buckets at a time you can use S3 Batch to do batch operations, and this is very helpful, for example, when you want to encrypt unencrypted objects on an existing Amazon S3 buckets, or when you want to copy existing files from one bucket to another before enabling S3 Replication. And to create this list of files, you can use S3 Inventory, for example.

Performance​

In terms of performance improvements on Amazon S3, you can use Multi-part upload to upload files in, in a parallel way. You can have S3 Transfer Acceleration to transfer S3 files faster from one region to another region and S3 Select to only retrieve the data you need out of Amazon S3.

Automation​

For automation, you can use S3 Event Notifications that has interfaces with SNS, SQS, Lambda, and EventBridge. And this allows you to, for example, react to events where new objects are created on your Amazon S3 buckets.

DocumentDB​

NoSQL database , which is an Aurora version for MongoDB: MongoDB is used to store query and index JSON data, and you have the same similar deployment concept as Aurora with DocumentDB.

So that means it's a fully managed database, it's highly available. Data is replicated across 3 Availability Zones and DocumentDB storage automatically will grow in increments of 10 gigabytes, and DocumentDB has been engineered so it can scale to workloads with millions of requests per second.

Neptune​

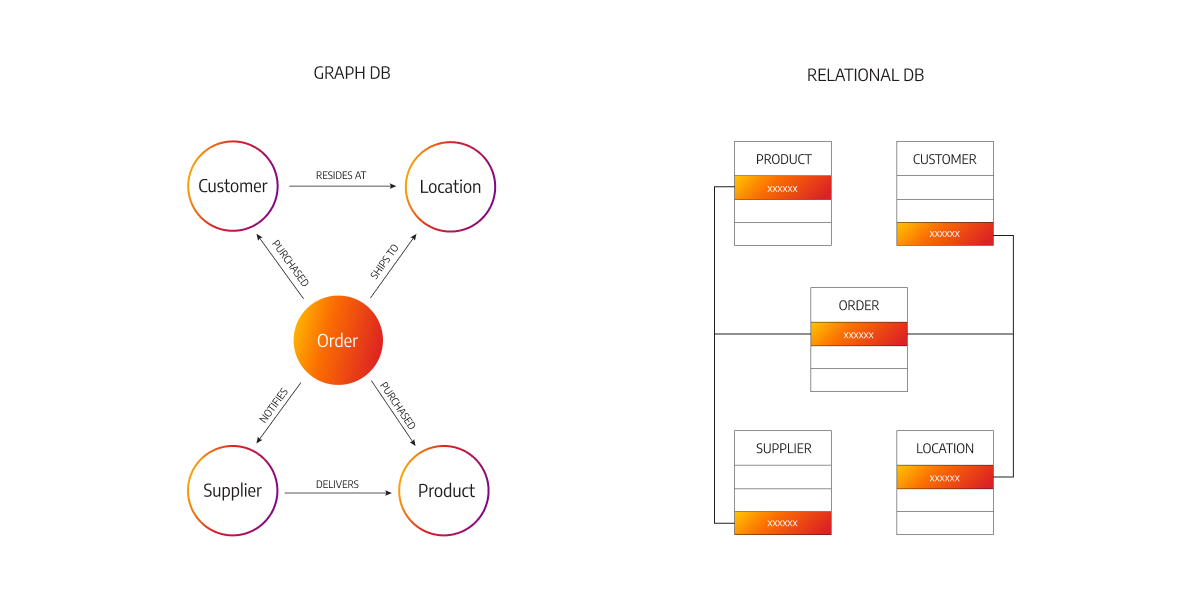

Neptune is a fully managed graph database. Graph Database

So an example of what a graph dataset would be would be, for example, something we all know, which is a social network. So if we look at a social network, people are friends, they like, they connect, they read, they comment, and so on. So users have friends, posts will have comments, comments have likes from users, users share and like posts. And so all these things are interconnected, and so they create a graph. And so this is why Neptune is a great choice of database when it comes to graph datasets.

Neptune has replication across 3 AZ, up to 15 Read replicas.

It's used to build and run applications that are gonna be with highly connected datasets, so like a social network, and because Neptune is optimized to run queries that are complex and hard on top of these graph datasets. You can store up to billions of relations on the database and query the graph with milliseconds latency.

It's highly available with application across multiple Availability Zones, and it's also great for storing knowledge graphs.

For example, the Wikipedia database is a knowledge graph because all the Wikipedia articles are interconnected with each other. Fraud detection, recommendations engine, and social networking.

Neptune Streams​

Streams in Amazon Neptune are going to be a real time ordered sequence of data for every change that happens within your graph data in your Neptune database.

So that means that whenever an application is writing to Amazon Neptune, then the changes will be available immediately after writing into that Neptune Streams. So in that stream, you have no duplicates and a strict ordering of changes happening within your Neptune Cluster.

So in a graph, we have Writes, and these Writes are written, of course, to your Neptune Cluster, but also to a Neptune Stream. Now this stream data is accessible using an HTTP REST API. That means that your applications, for example, that want to read your Neptune Stream, can use this API to get all the changes in real time.

So the use cases for enabling Neptune Streams are, for example, to send notifications whenever some changes are made within your graph data, or to maintain your data synchronized into another data store.

For example, you want to replicate the changes happening within your Neptune Cluster into Amazon S3 or OpenSearch or ElastiCache or more. Or if you want to replicate data across multiple regions for your Neptune Cluster by looking at all the changes in the stream and rewriting those into a target Neptune Cluster.

Keyspaces (for Apache Casandra)​

Keyspaces is a managed Apache Cassandra on AWS where Cassandra is an open-source NoSQL distributed database. With Keyspaces you get Cassandra directly managed on the cloud by AWS.

a serverless type of service,it's scalable, it's highly available, and fully managed by AWS, and it will automatically scale tables up and down based on the application's traffic.

Tables are replicated 3 times across multiple AZ and to perform your queries on top of Keyspaces, you are going to use the Cassandra Query Language (CQL).

You're going to get single-digit millisecond latency at any scale, and you can do thousands of requests per second.

Capacity​

  • On-demand
  • Provisioned (auto-scaling)

You get encryption features, backup, Point-In-Time Recovery (PITR) up to 35 days, and so, the use cases is going to be to store IoT device information, time-series data.

QLDB​

Quantum Ledger (реестр) Database (QLDB) — это книга, в которой регистрируются финансовые транзакции, поэтому QLDB будет просто регистрировать финансовые транзакции.

It's a fully managed database, it's serverless, highly available, and has replication of data across 3 Availability Zones. And it's used to review history of all the changes made to your application data over time, that's why it's called a Ledger. So it's an immutable system (неизменная система) as well, that means that once you Write something to the database, it can not be removed or modified. And there is also a way to have a cryptographic signature to make sure that indeed nothing has been removed.

Well, there is behind the scenes a journal, and so a journal has a sequence of modifications. And so anytime a modification is made, there is a cryptographic hash that is computed which guarantees that nothing has been deleted or modified and so this can be verified by anyone using the database. So this is extremely helpful for financial transactions because you wanna make sure that obviously no financial transaction is disappearing from your database which makes QLDB a great Ledger database in the cloud.

So you get two to three times better performance than common ledger blockchain frameworks and also you can manipulate data using SQL.

caution

The difference between QLDB and Managed Blockchain is that with QLDB, there is no concept of decentralization. That means that there's just a central database owned by Amazon that allows you to write this journal. QLDB has a central authority component and it's a ledger, whereas Managed Blockchain is going to have a de-centralization component as well.

Timestream​

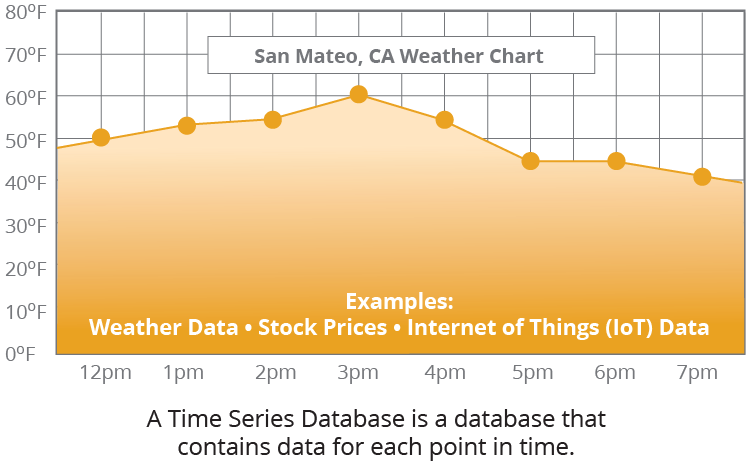

Time Series Database - it's fully managed, it's fast, it's scalable and it's serverless. Time Series Database

it's a bunch of points that have a time included in them.

With Timestream you can automatically adjust the database up and down to scale capacity and you can store and analyze trillions of events per day. The idea is that if you have a time series database it's going to be much faster and much cheaper than using relational databases for time series data.

You can do schedule queries. You can have records with multiple measures and there is full SQL compatibility. The recent data will be kept in memory. And then the historical data is kept in a cost-optimized storage tier. As well as, you have time series analytics function to help you analyze your data and find patterns in near real time.
